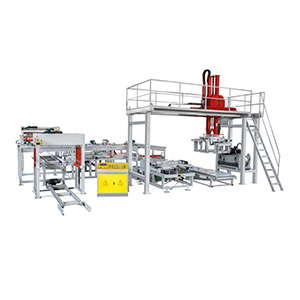

Fully Automatic Palletizer KMR-2100

Palletizer machine is able to complete all kinds of goods stacking machine according to the way of grouping set in advance, its
structure is simple, high degree of specialization, small footprint,usually as the follow-up equipment of packaging line,
improve production capacity and transport capacity.(Whether your business uses bags, bales, bundles, cases, trays (or more!), we can engineer a robotic palletizing solution.)

***** Max palletizing loading : 60kg
***** Working Radius :2100mm
*****Axles : 4 Axles

Parameter

Details:

Advantage

1. Inverted bag conveyor

The vertical bag passes through the packaging machine, sewing machine and conveyor and enters the vertical inverting conveyor.
Through the detection of the photoelectric switch, it is judged whether the bag has reached the position of pushing the bag;
at the same time, the photoelectric switch of the lower horizontal conveyor is used to detect whether there is a bag The necessary
conditions such as the safety distance to push down, if all the conditions are met, the PLC drives the relay→solenoid valve→cylinder
action to push the bag down into a horizontal state for transportation

2. Robot Gripper

When the product to be palletized is transported to the grabbing line and the photoelectric switch senses that the product is in place,
and the palletizing position photoelectrically senses that there is a pallet to be palletized at the pallet position, thepalletizer program
drives the servo motor to move the flange with the gripper into place. The gripper solenoid valve is driven,the air cylinder is actuated,
and the gripper puts the bags on the tray in an orderly manner.

3. Grab Conveyor

The packaging bags are transported from the press-packing conveyor to the grabbing conveyor and palletized with the robot.
Ensure the safe and convenient grabbing of the palletizing robot and reduce noise.

 4. Shaping Conveyor

The product is conveyed by the vibration of the square roller, the packaging bag is more flat, and the palletizing is neat and
beautiful; at the same time, the reshaping conveyor can spread the product at a certain distance, which is convenient for
photoelectric detection and subsequent palletizing.

 5. Packing Conveyor

Through the vibration conveying of the square roller, the packaging bag passes through the pressing conveyor at the same time
to reshape the packaging bag, so that the products in the packaging bag are uniform and the palletizing pattern is more neat and beautiful.

FAQ

1. who are we?

We are located in Zhengzhou, China, which providing palletizing solutions and Robot arm, which has independent technical teams
and over 10 years technical and overseas sales experience.

2. how can we guarantee quality?

Always finishing a pre full testing by our professional engineers; Always final 100% Inspection before shipment;

3.what can you buy from us?

Industrial Robot Arms for welding, painting and spraying, handling materials , Pick and place, or grinding or other customized solution.

4. why should you buy from us not from other suppliers?
A.We can provide with suitable package solution of robot arm;
B.You can get good purchase experience and nice technical support;
C.We can provide customized design,high quality guarantee,competitive quotation, honest and reliable business is our tenet.

5. what services can we provide?
A.Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDP,DDU,DAF；
B.Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
C.Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card ,Western Union,Cash,

More information please submite a message to us
